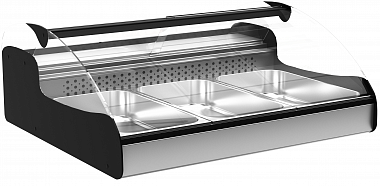

Showcases A89 (Argus)
Main features:
Tabletop display cabinets A89 (ARGUS) are designed for displaying both ready-to-eat food products and semi-finished products.
INSTALLATION OF SM, SV showcase:
The display case should be installed no closer than 2 m from heating appliances. It is prohibited to operate the display case if it is exposed to direct sunlight, air flows from air conditioners, fans and heaters.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
After starting the unit, and when the required temperature is reached, load the display case with products pre-cooled to the temperature of the useful volume.
The height of display of products for demonstration should be no more than 100 mm.
Do not block the air ducts.
If the requirements are not met, air circulation is disrupted, the performance characteristics of the product deteriorate, which can lead to food spoilage.
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
INSTALLATION OF SH showcase (thermal):
The display must be installed at least 1 m from flammable materials.
It is prohibited to operate the display cabinet if it is exposed to air flows from air conditioners or fans.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
The temperature is regulated by a thermostat, the extreme left position means the display is off.
Load the display case with products, evenly placing them in the gastronorm containers; the height of the product display should be no more than 100 mm.
To avoid fogging of the glass of the display case, display products in sealed packaging.
INSTALLATION OF SM, SV showcase:
The display case should be installed no closer than 2 m from heating appliances. It is prohibited to operate the display case if it is exposed to direct sunlight, air flows from air conditioners, fans and heaters.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
After starting the unit, and when the required temperature is reached, load the display case with products pre-cooled to the temperature of the useful volume.
The height of display of products for demonstration should be no more than 100 mm.
Do not block the air ducts.
If the requirements are not met, air circulation is disrupted, the performance characteristics of the product deteriorate, which can lead to food spoilage.
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
INSTALLATION OF SH showcase (thermal):
The display must be installed at least 1 m from flammable materials.
It is prohibited to operate the display cabinet if it is exposed to air flows from air conditioners or fans.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
The temperature is regulated by a thermostat, the extreme left position means the display is off.
Load the display case with products, evenly placing them in the gastronorm containers; the height of the product display should be no more than 100 mm.
To avoid fogging of the glass of the display case, display products in sealed packaging.
- Compressor made in Europe
- Carel electronic control unit
- Steel body
- Thermal insulation of the body, countertops - polyurethane foam
- Exhibition surface, stainless steel tabletop
- LED backlight
- Curved front glass
- Night doors
- Gastronorm container 1/1x65-3 pcs
- Mobile stand (custom color - metallic gray, black) h-575 mm
- Set of gastronorm containers of different sizes:
- GN1/3 325x176x40(65) – 9 pcs
- GN1/3 325x176x40(65) – 6 pcs and GN 1/1 325x530x40(65) – 1 pc
- GN1/3 325x176x40(65) – 3 pcs and GN 1/1 325x530x40(65) – 2 pcs
