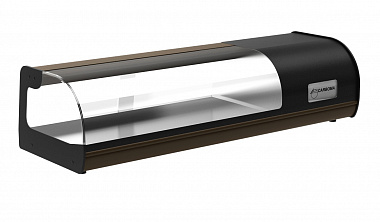

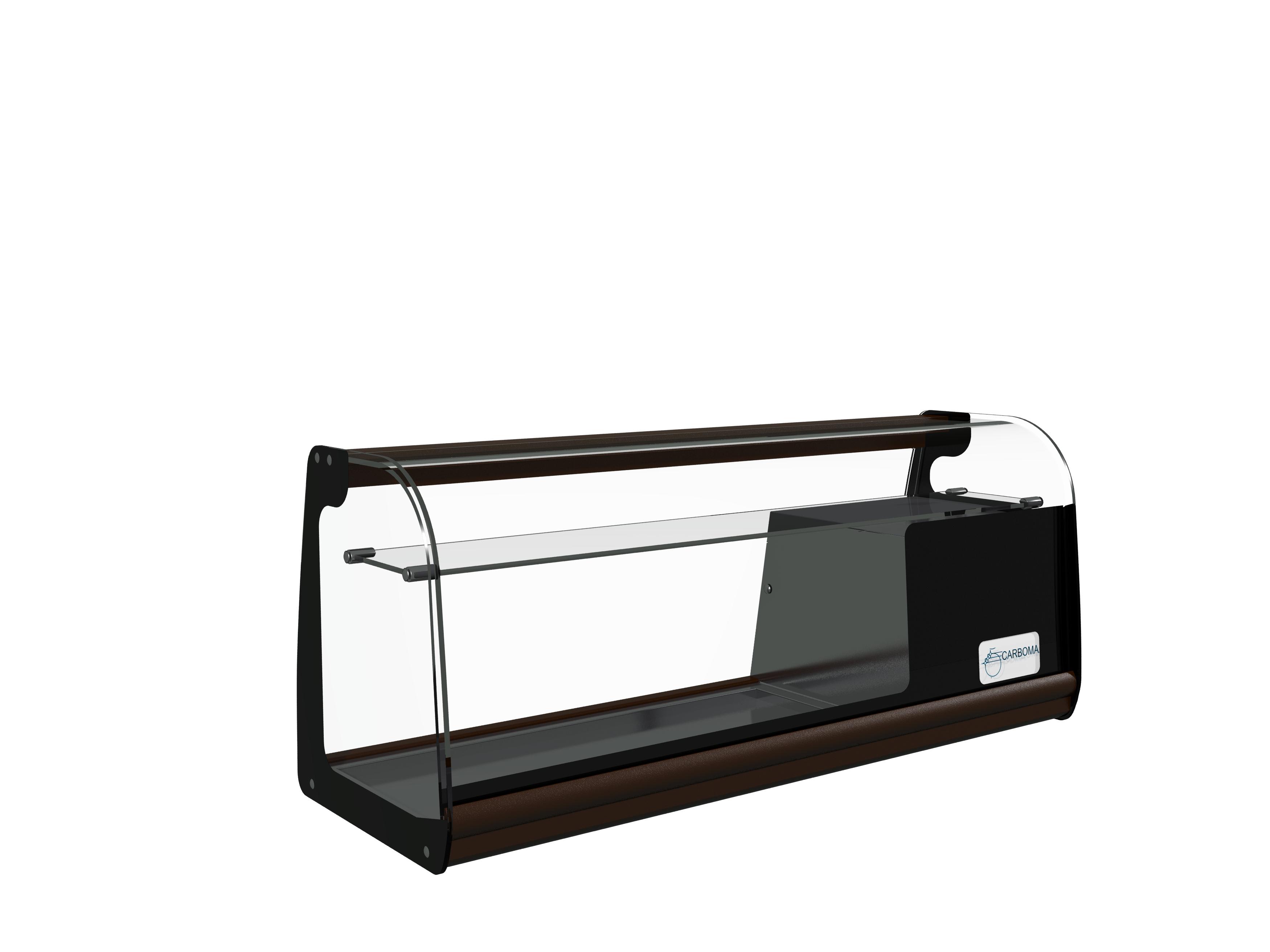

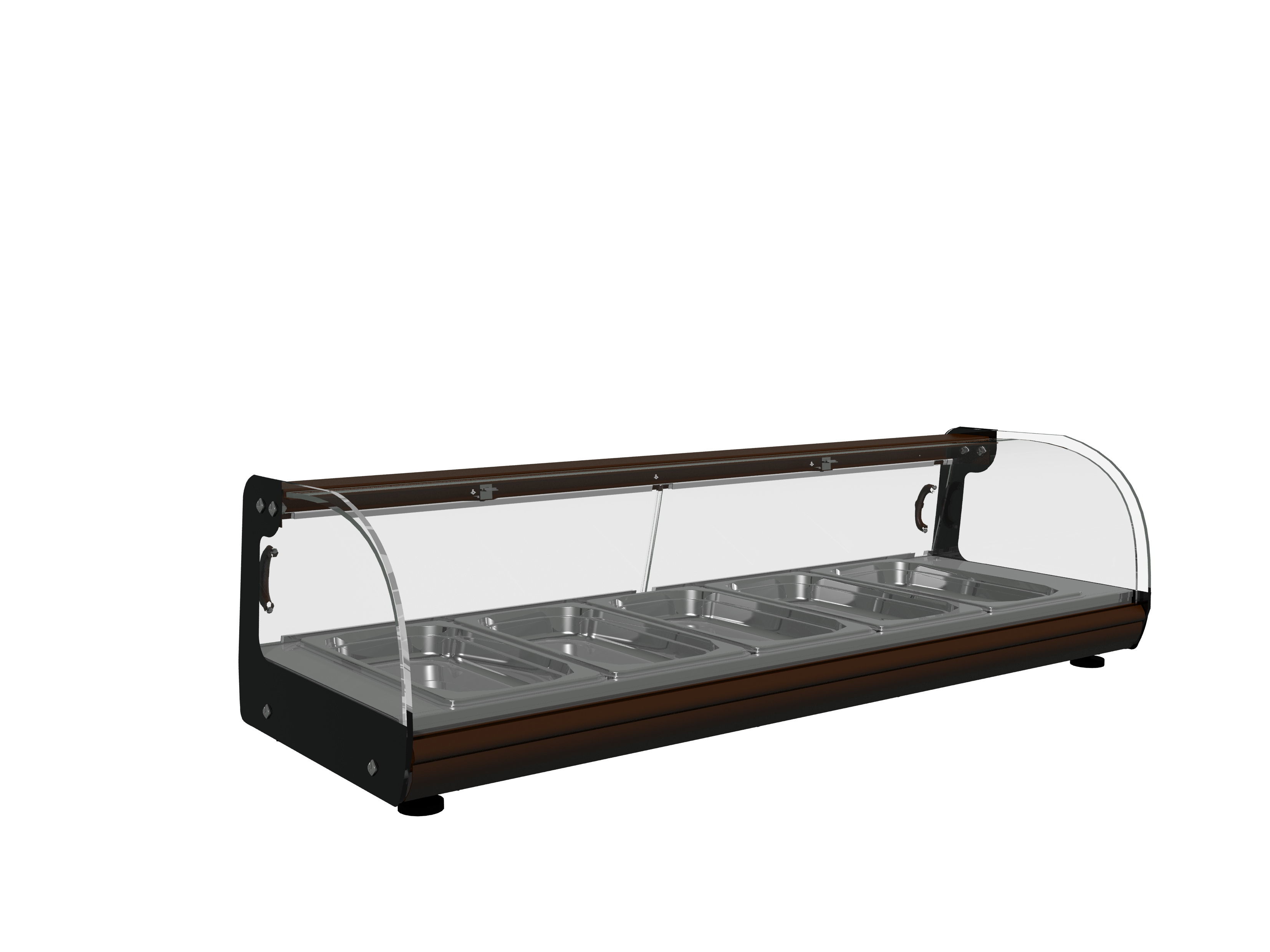

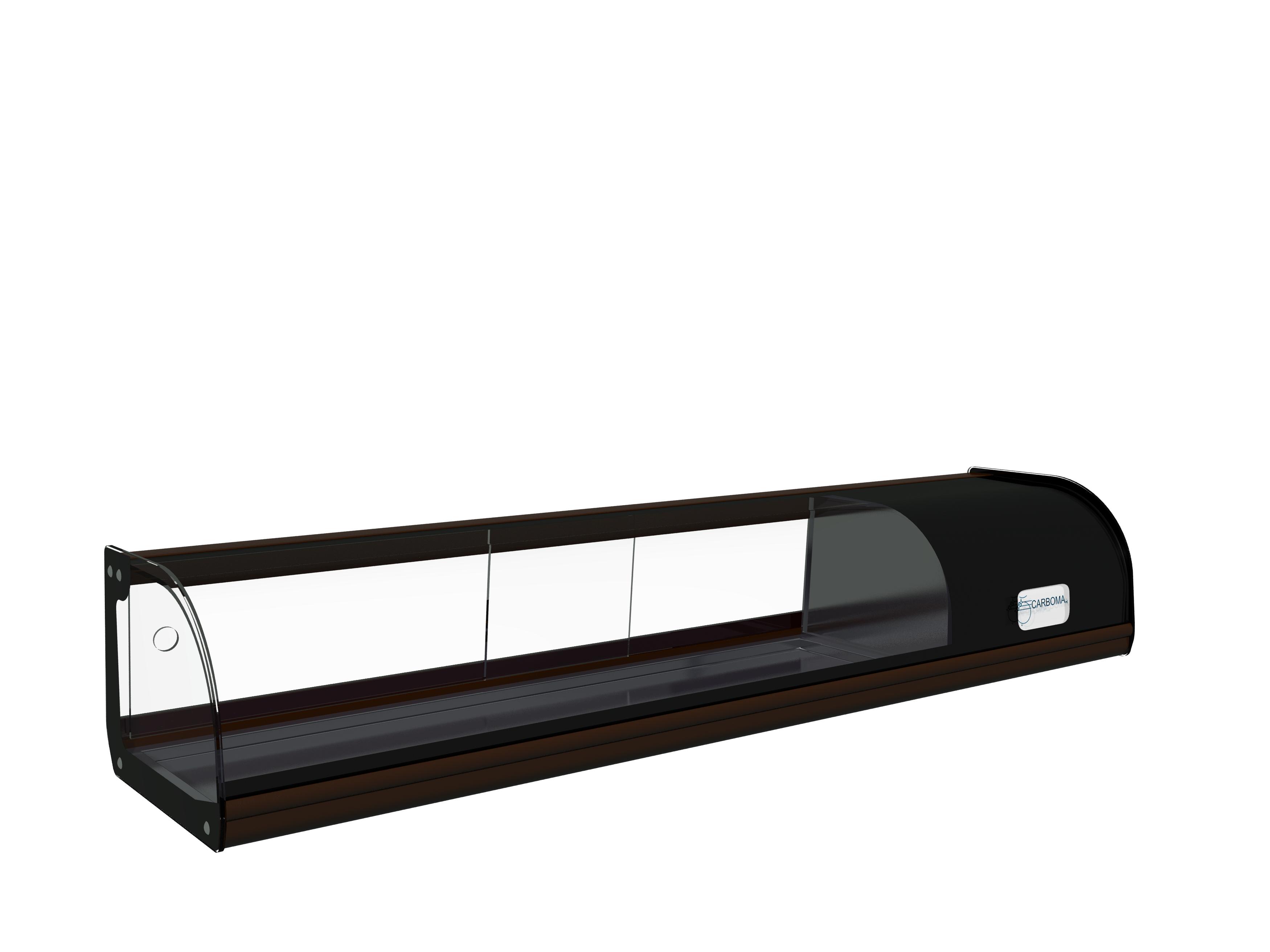

SHOWCASES А37 (BAR)

картинка SHOWCASES А37 (BAR)
картинка SHOWCASES А37 (BAR)
картинка SHOWCASES А37 (BAR)
картинка SHOWCASES А37 (BAR)
картинка SHOWCASES А37 (BAR)
картинка SHOWCASES А37 (BAR)
картинка SHOWCASES А37 (BAR)
картинка SHOWCASES А37 (BAR)

Main features:

  • Refrigerating unit Electrolux
  • Nominal voltage 220 V, 50 Hz
  • Climate class: 3
  • Ambient temperature +12…+25 °С, relative humidity not more than 60%
  • Type of cooling: static
  • The body is made of steel
  • Compressors of the world leading manufacturers
Brochure 3D models
Specifications Description Standard complete set Options
Model Dimensions, mm Weight, kg t, °C Exhibited area, mm Electricity consumption per day, kW
Length Width Height
A37 SM 1,0-1 (ВХСв-1,0 Сarboma)A37 SM 1,0-1 (ВХСв-1,0 Сarboma) A37 SM 1,0-1 (ВХСв-1,0 Сarboma)
Blueprint 		1090 370 260 33 0…+8 850х305 2,5
A37 SM 1,5-1 (ВХСв-1,5 Сarboma)A37 SM 1,5-1 (ВХСв-1,5 Сarboma) A37 SM 1,5-1 (ВХСв-1,5 Сarboma)
Blueprint 		1440 370 260 37 0…+8 1260х305 2,7
A37 SM 1,8-1 (ВХСв-1,8 Сarboma)A37 SM 1,8-1 (ВХСв-1,8 Сarboma) A37 SM 1,8-1 (ВХСв-1,8 Сarboma)
Blueprint 		1790 370 260 43 0…+8 1400х305 2,9
A37 SM 1,0-11 (ВХСв-1,0 XL Сarboma)A37 SM 1,0-11 (ВХСв-1,0 XL Сarboma) A37 SM 1,0-11 (ВХСв-1,0 XL Сarboma)
Blueprint 		1090 370 400 34 0…+8 850х305 2,5
A37 SM 1,5-11 (ВХСв-1,5 XL Сarboma)A37 SM 1,5-11 (ВХСв-1,5 XL Сarboma) A37 SM 1,5-11 (ВХСв-1,5 XL Сarboma)
Blueprint 		1440 370 400 39 0…+8 1260х305 2,7
A37 SM 1,8-11 (ВХСв-1,8 XL Сarboma)A37 SM 1,8-11 (ВХСв-1,8 XL Сarboma) A37 SM 1,8-11 (ВХСв-1,8 XL Сarboma)
Blueprint 		1790 370 400 45 0…+8 1400х305 2,9
A37 SH 1,0-1 (ВТ-1,0 Сarboma)A37 SH 1,0-1 (ВТ-1,0 Сarboma) A37 SH 1,0-1 (ВТ-1,0 Сarboma)
Blueprint 		1015 370 260 26 до +60 880х305 5,9
A37 SH 1,5-1 (ВТ-1,5 Сarboma)A37 SH 1,5-1 (ВТ-1,5 Сarboma) A37 SH 1,5-1 (ВТ-1,5 Сarboma)
Blueprint 		1370 370 260 34 до +60 1232х305 6,7
Desktop showcases A37 (Bar) are designed for short-term storage, presentation and sale of sushi, sandwiches, meat, poultry, salads and  desserts in shops, cafes, bars, restaurants.
  • Controller
  • Expositional surface, tabletop made of stainless steel
  • Night curtains made of organic glass
  • The body color: brown
  • Gastronorm 1/3 made of stainless steel (325х176х40 mm) for thermal showcases (1,0-5 pc.;1,5-7 pc.;1,8-8 pc.)
  • Defrost type: natural heat input
  • Gastronorm 1/3 made of stainless steel (325х176х40 mm) for refrigerating showcases (1,0-5 pc.; 1,5-7 pc.; 1,8-8 pc.)

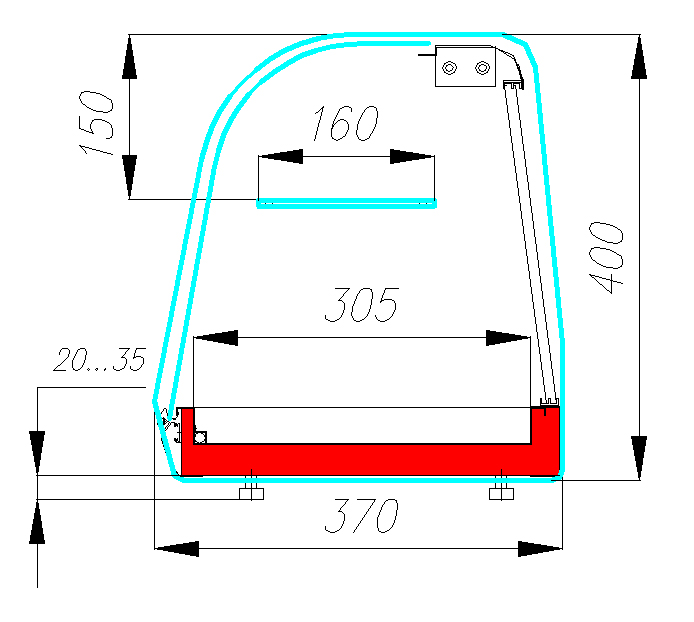

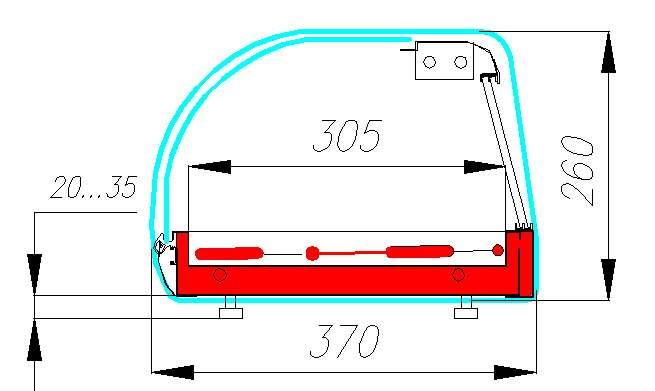

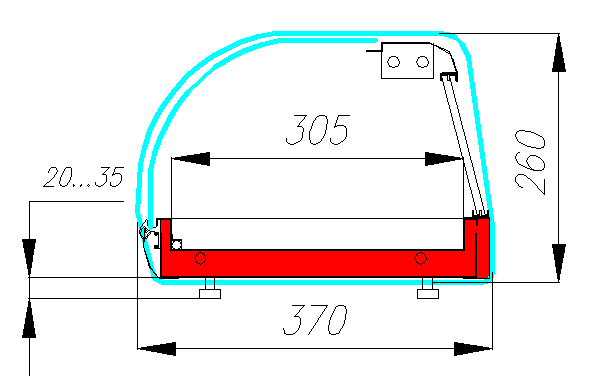

Blueprints

A37 SM 1,0-1 (ВХСв-1,0 Сarboma)
Чертеж A37 SM 1,0-1 (ВХСв-1,0 Сarboma)
A37 SM 1,0-1 (ВХСв-1,0 Сarboma)
A37 SM 1,5-1 (ВХСв-1,5 Сarboma)
Чертеж A37 SM 1,5-1 (ВХСв-1,5 Сarboma)
A37 SM 1,5-1 (ВХСв-1,5 Сarboma)
A37 SM 1,8-1 (ВХСв-1,8 Сarboma)
Чертеж A37 SM 1,8-1 (ВХСв-1,8 Сarboma)
A37 SM 1,8-1 (ВХСв-1,8 Сarboma)
A37 SM 1,0-11 (ВХСв-1,0 XL Сarboma)
Чертеж A37 SM 1,0-11 (ВХСв-1,0 XL Сarboma)
A37 SM 1,0-11 (ВХСв-1,0 XL Сarboma)

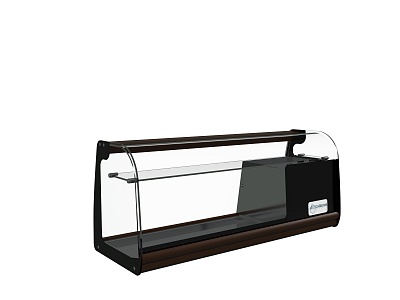

A37 SM 1,5-11 (ВХСв-1,5 XL Сarboma)
Чертеж A37 SM 1,5-11 (ВХСв-1,5 XL Сarboma)
A37 SM 1,5-11 (ВХСв-1,5 XL Сarboma)
A37 SM 1,8-11 (ВХСв-1,8 XL Сarboma)
Чертеж A37 SM 1,8-11 (ВХСв-1,8 XL Сarboma)
A37 SM 1,8-11 (ВХСв-1,8 XL Сarboma)
A37 SH 1,0-1 (ВТ-1,0 Сarboma)
Чертеж A37 SH 1,0-1 (ВТ-1,0 Сarboma)
A37 SH 1,0-1 (ВТ-1,0 Сarboma)
A37 SH 1,5-1 (ВТ-1,5 Сarboma)
Чертеж A37 SH 1,5-1 (ВТ-1,5 Сarboma)
A37 SH 1,5-1 (ВТ-1,5 Сarboma)
